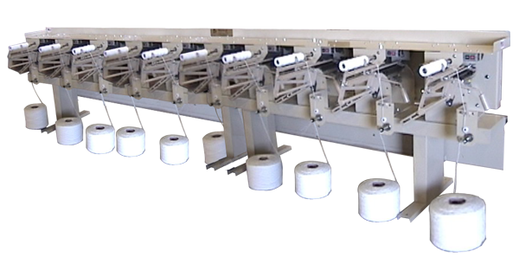

Maverick M1010 Filter Winder

The M1010 filter winding machine is ideal for manufacturing continuous, yarn or string, wound filters. This is our very popular ten spindle model, for producing high quality and high production volume when needed.

Specifications:

The M1010 is capable of producing filters:
4.5” – 10.25” in length
1.5” – 5.5” diameter
Micron ratings of .5 to 200
Ten spindle machine / 400 pcs/hr. 10”L.
Each spindle is set up and runs independently from one another.
I.E. : All ten spindles can be set to run the same type of filters or all different lengths and microns if so desired.
Ninety second typical cycle time per 10” length
Single or three phase electric power
No air supply required
Machine frames and components, laser cut steel and other materials
All Filter Winding Machines are Made in Amarillo, Texas, U.S.A.

Dimensions:

L220” x W42” x H48”
Shipping weight 1740 lbs.
Ships in two pieces, in two crates
